General Specification:
● Frame:Aluminum alloy die casting, surface electrophoretic anti-corrosion treatment
Impeller:Metal steel plate stamping forming
● Bearing type:Ball
● Operation Temperature: -10℃~95℃
Humidity: 15%~90%RH(Frost Eliminated)
● Storage Temperature: -10℃~55℃
Humidity: 15%~85%RH(Frost Eliminated)

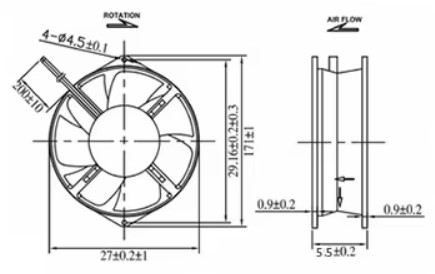

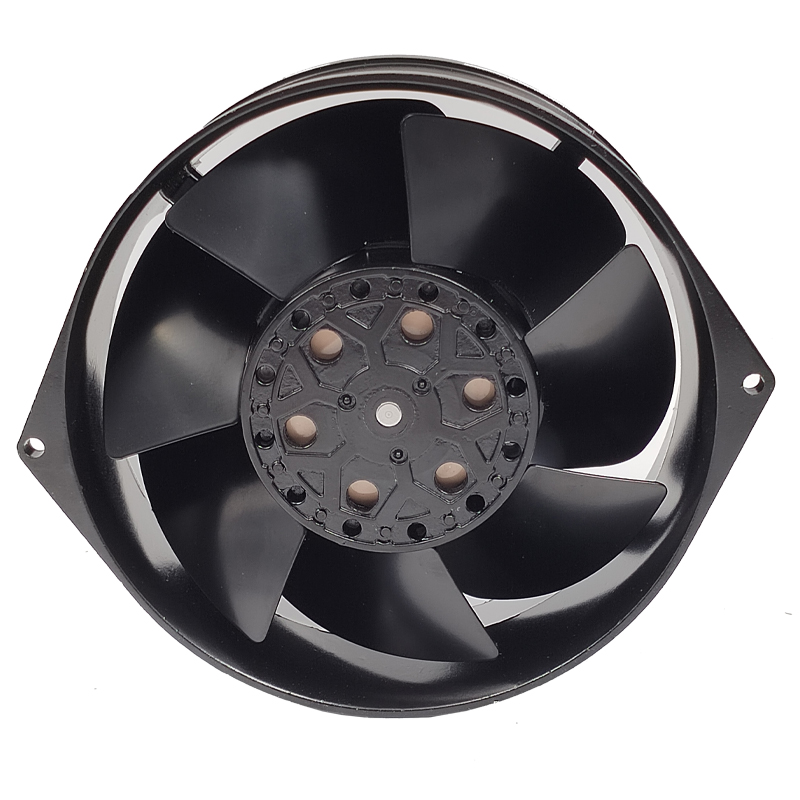

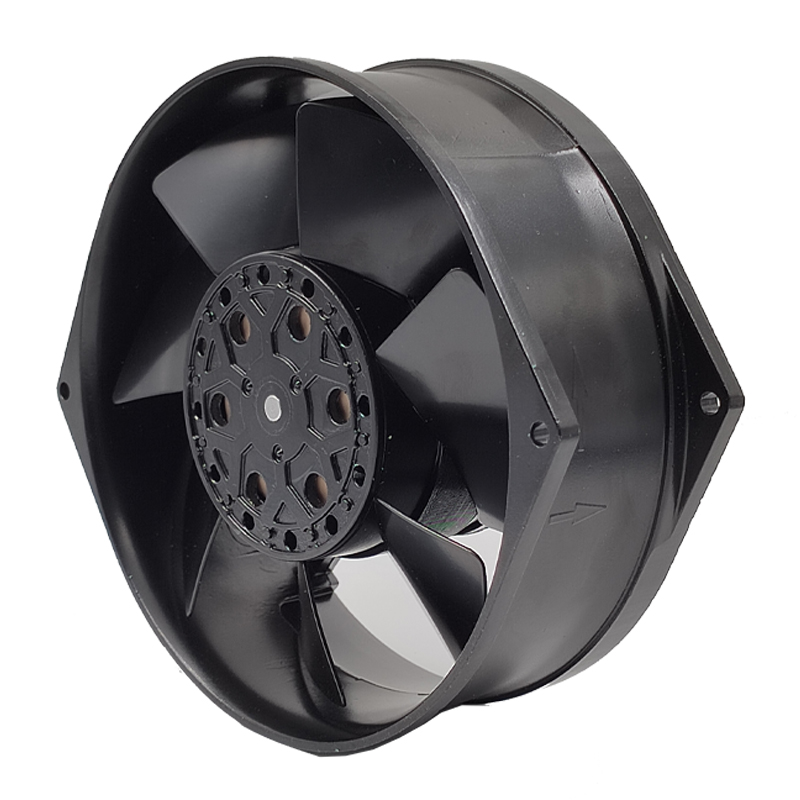

Metal AC Fan 172x150x55mm
Model No. |
Bearing |
Frequency |
Voltage |
Current |
Rated Input Power |
Air Flow |

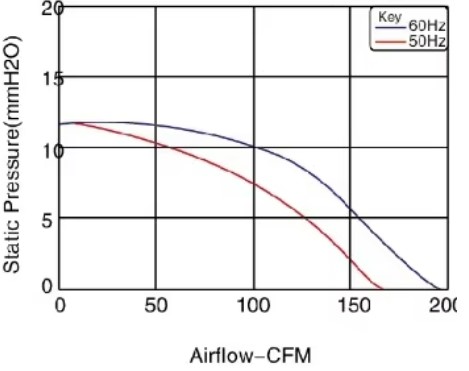

Static pressure |
Noise |
Speed |
(Hz) |
(VAC) |
(A) |
(W) |
(CFM) |
(mm-H2O) |
(dBA) |
(RPM) |
||
SA17055H110B-JS |
Ball |
50/60 | 110 |
0.58/0.50 |
42/39 |
325/380 |
19.0 |
48/52 |
2800/3100 |
SA17055H220B-JS |
Ball |
220 |
0.25/0.20 |
35/31 |
325/380 |
19.0 |
48/52 |
2800/3100 |
|
SA17055M110B-JS | Ball | 110 |
0.40/0.35 |
35/31 |
289/325 |
19.0 |
45/48 |
2400/2800 |
|
SA17055M220B-JS | Ball | 220 | 0.20/0.18 | 28/35 | 289/325 | 19.0 | 45/48 | 2400/2800 |
