120x120x38mm All Metal AC Fan


General Specification:

● Frame:Aluminum alloy die casting, surface electrophoretic anti-corrosion treatment

Impeller:Metal steel plate stamping forming

● Bearing type:Ball

● Operation Temperature: -10℃~95℃

Humidity: 15%~90%RH(Frost Eliminated)

● Storage Temperature: -10℃~55℃

Humidity: 15%~85%RH(Frost Eliminated)

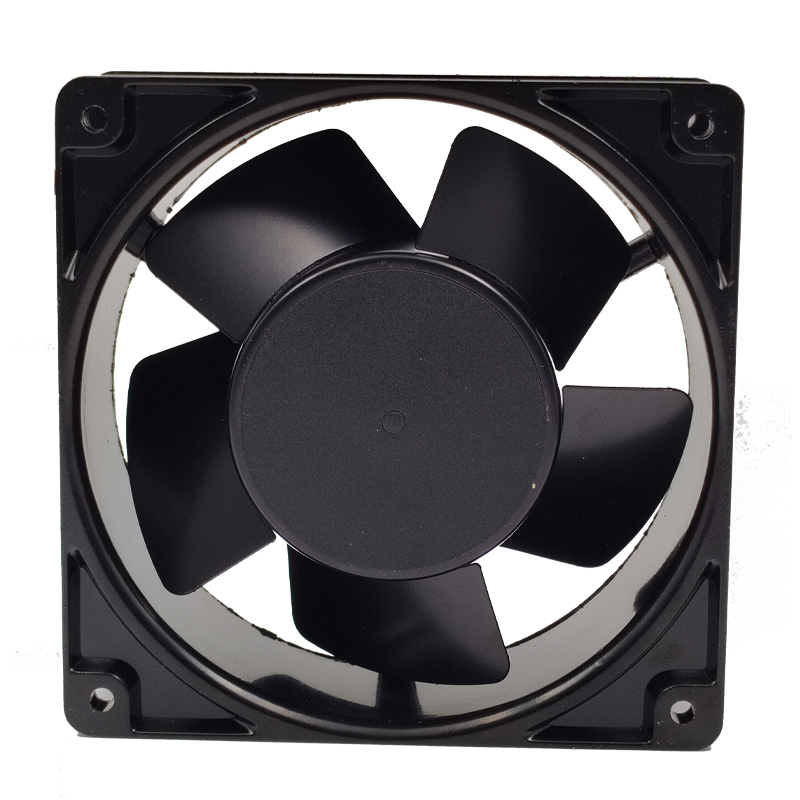

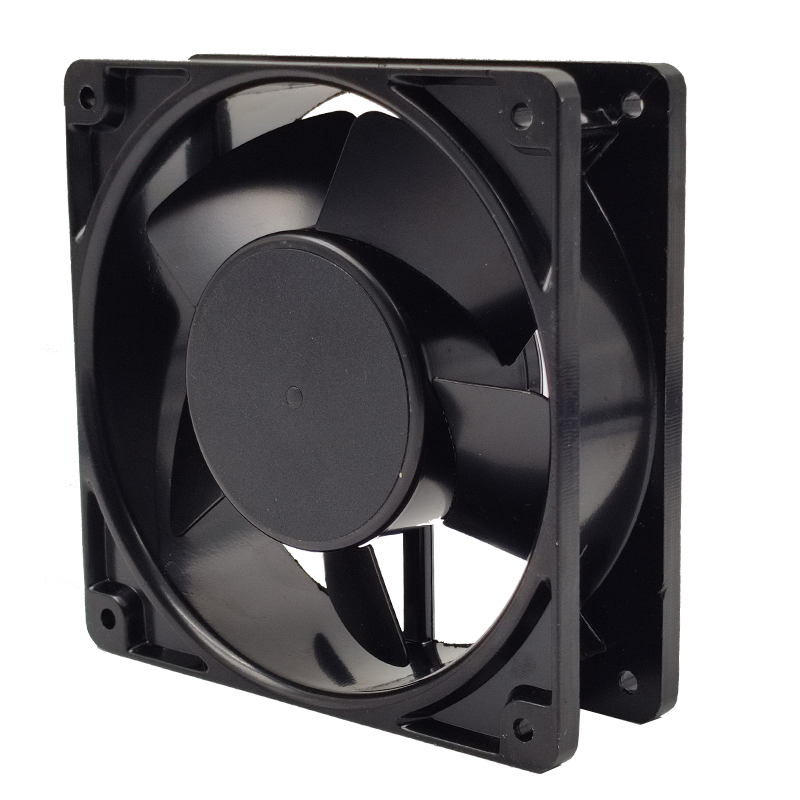

All Metal AC fan 120x120x38mm

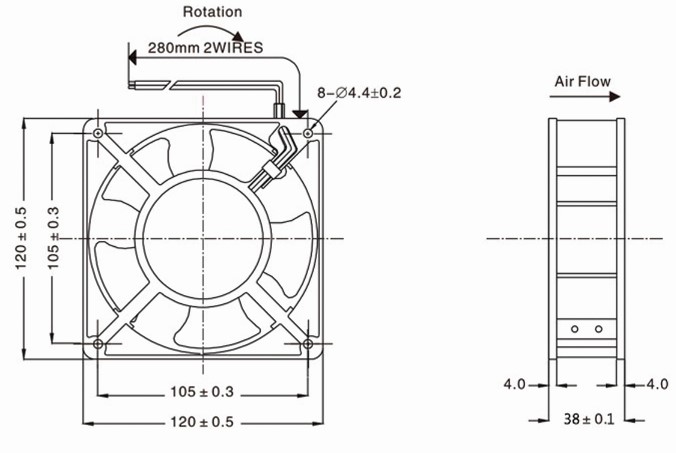

120x120x38 all metal AC fan drawing


Model No.

Bearing

Frequency

Voltage

Current

Rated Input Power

Air Flow

Static pressure

Noise

Speed

(Hz)

(VAC)

(A)

(W)

(CFM)

(mm-H2O)

(dBA)

(RPM)

SA12038H110B-JS

Ball

50/60 110

0.20/0.18

20/18

105/123

7.89/8.63

45/47

2750/3250

SA12038H220B-JS

Ball

220

0.14/0.10

25/23

105/123

7.89/8.63

45/47

2750/3250
