92x92x38mm All Metal AC Fan


General Specification:

● Frame:Aluminum alloy die casting, surface electrophoretic anti-corrosion treatment

Impeller:Metal steel plate stamping forming

● Bearing type:Ball

● Operation Temperature: -10℃~95℃

Humidity: 15%~90%RH(Frost Eliminated)

● Storage Temperature: -10℃~55℃

Humidity: 15%~85%RH(Frost Eliminated)

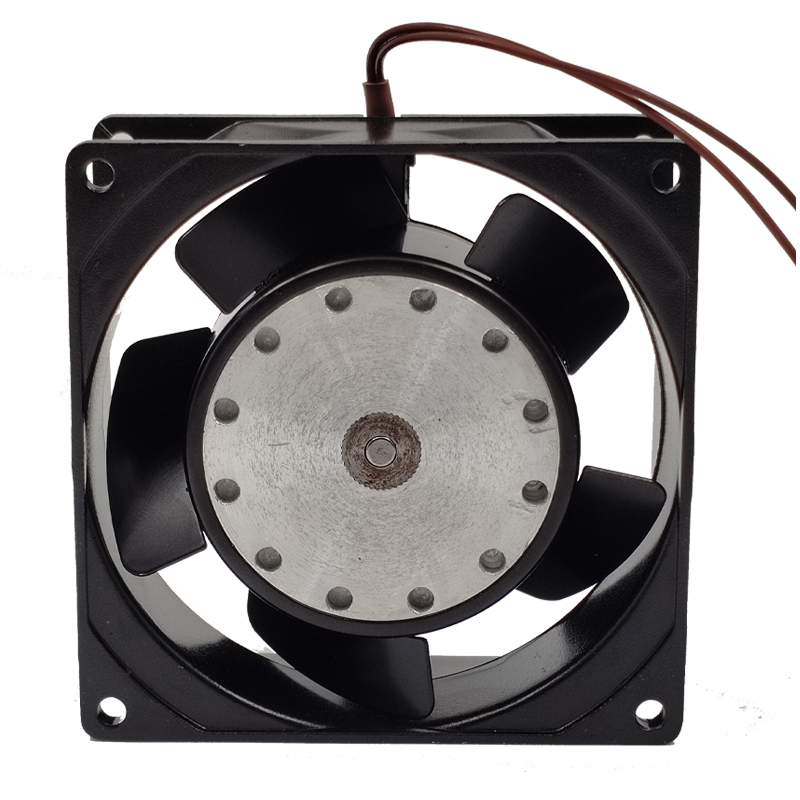

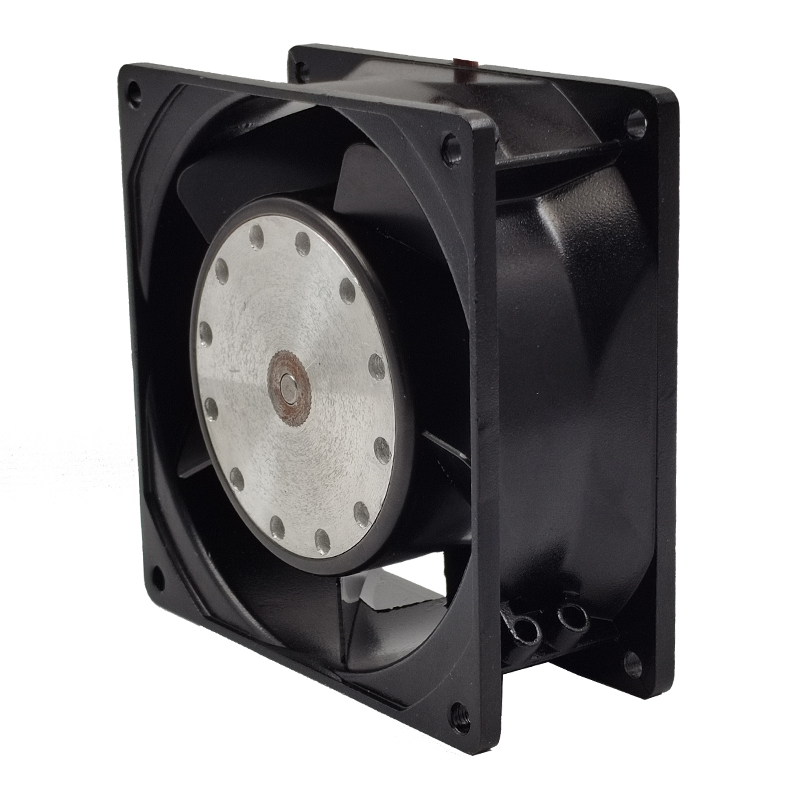

All Metal AC fan 92x92x38mm

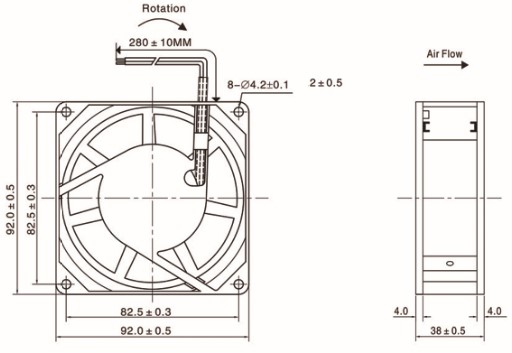

92x38 all metal AC fan drawing

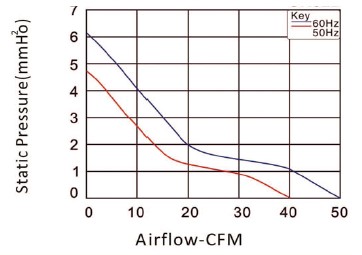

92x38 all metal AC fan PQ curve

Model No.

Bearing

Frequency

Voltage

Current

Rated Input Power

Air Flow

Static pressure

Noise

Speed

(Hz)

(VAC)

(A)

(W)

(CFM)

(mm-H2O)

(dBA)

(RPM)

SA9238H110B-JS

Ball

50/60 110

0.18

17/14

38/40

7.8/9.1

46/54

2600/3000

SA9238H220B-JS

Ball

220

0.10

17/14

38/40

7.8/9.1

46/54

2600/3000

SA9238M110B-JS

Ball

110

0.15

11

35/40

7.8/8.5

42/50

2300/2700

SA9238M220B-JS Ball 220 0.08 11 35/40 7.8/8.5 42/50 2300/2700
